一、Brief introduction
104EA mechanical phase stable cable assemblies made by the precision with 104EA cable connector is made with the use of frequency bandwidth, excellent high frequency performance, low loss, mechanical relative stability advantages. Cable from the outer sheath of rubber, and the use of appropriate protective structure, so this cable assembly with ultra softness, can be repeatedly bent, strong super abrasion, impact, collision accidental injury and other advantages. The cable diameter is 10.3mm, suitable for field testing, repeated moves and other more harsh environment.
二、Technical indicators
|
Component Type
|
Temperature
|
Frequency Range
|
Phase Stability
|
Insertion Loss
|
VSWR
|
|
SMA-J/SMA-J
|
-40℃～+85℃
|
DC～18GHz
|
±2°(18GHz)
|
≤1.25dB/m(18GHz)
|
≤1.3
|
|
SMA-JW/SMA-JW
|
|||||
|
N-J/N-J
|

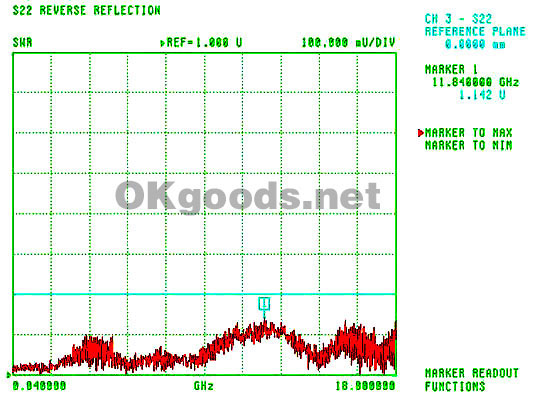

三、Test Data
