一、Brief introduction
102E mechanical phase stable cable assemblies made by a precision connector mating 102E cables together (cable outer diameter of 4mm), using frequencies up to 40GHz, except with the use of frequency bandwidth, good RF performance, good mechanical phase stability, etc. In addition, also has a super soft, easy stereotypes, such as mechanical advantage to bend. The product is suitable for the spatial location of the complex, and the high performance requirements of the occasion.
二、Technical indicators
|
Component Type
|
Temperature
|
Frequency range
|
Insertion Loss
|
Phase Stability
|
VSWR
|
|
SMA-J/SMA-J
SMA-JW/SMA-JW
|
-40℃～+85℃
|
DC～20GHz
|
≤1.8dB/m
|
±2°（18GHz）
|
≤1.20
|
|
3.5-J/3.5-J
|
DC～33GHz
|
≤2.4 dB/m
|
≤1.25
|
||
|
K-J/K-J
|
DC～40 GHz
|
≤2.66dB/m
|
≤1.35
|

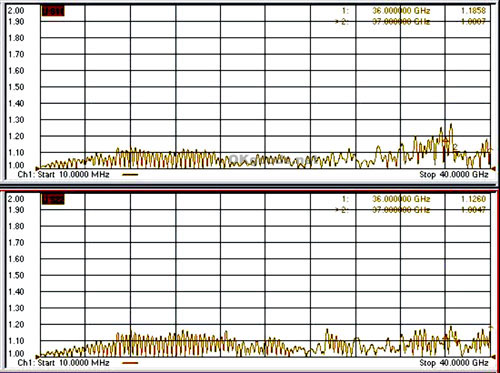

三、Test Data
