astro-STEEL-flex
Cable Types: 32041, 32086, 32081, 32027, 32019, 32039
High performance/high pull strength microwave coaxial cables
PRODUCT DESCRIPTION

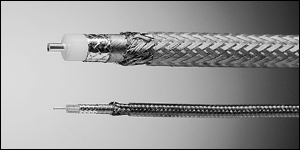

astro-STEEL-flex cables are lightweight flexible replacements to semi-rigid cable. All utilize triple shields for superior RF shielding, with a solid TFE dielectric for exceptional crush resistance without the need for heavy armor. The flat wire braid outer conductor provides low loss plus excellent Insertion Loss stability with flexure. The stainless steel outer braid provides improved mechanical pull strength when compared to cables with a copper wire outer braid.
|
PRODUCT FEATURES
|
RECOMMENDED CONNECTORS
|
| CABLE |
32041
|
32086
|
32081
|
32027
|
*32019
|
*32039
|
|
Replacement for |
----
|
Mil-C-17/152
|
Mil-C-17/152
|
RG-142
|
RG-212
|
RG-212
|
| Oper. Freq. |
85 GHz
|
18 GHz
|
50 GHz***
|
34 GHz
|
24 GHz
|
20 GHz
|
| Velocity |
70.3 %
|
70.3 %
|
70.3 %
|
70.3 %
|
70.3 %
|
70.3 %
|
| Impedance |
50 ohms
|
50 ohms
|
50 ohms
|
50 ohms
|
50 ohms
|
50 ohms
|
| Cap. pf./ft. |
29.7
|
29.6
|
30.0
|
29.0
|
29.7
|
29.4
|
|
Weight lbs./100 ft. |
0.8
|
1.0
|
1.0
|
2.8
|
4.3
|
6.7
|
|
Static Bend Radius Around Mandrel (IN.) |
0.07
|
0.20
|
0.20
|
0.30
|
0.40
|
0.88
|
|
Insertion Loss dB/100 ft. |
142 @ 18 GHz
|
138 @ 18 GHz
|
120 @ 18 GHz
|
65 @ 18 GHz
|
50 @ 18 GHz
|
43 @ 18 GHz
|
|
Connector Pull Test |
40 lbs.
|
40 lbs.
|
40 lbs.
|
50 lbs.
|
70 lbs.
|
70 lbs.
|

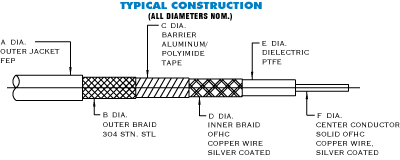

| CABLE |
A
|
B
|
C
|
D
|
E
|
F
|
| 32041 |
0.075
|
0.065
|
0.057
|
0.051
|
0.045
|
0.0142
|
| 32086 |
0.105
|
0.088
|
0.079?/font>
|
0.065
|
0.059
|
0.020**
|
| 32081 |
0.098
|
0.080
|
0.072
|
0.067
|
0.061
|
0.020***
|
| 32027 |
0.167
|
0.145
|
0.128
|
0.123
|
0.116
|
0.036
|
| 32019 |
0.210
|
0.190
|
0.174
|
0.169
|
0.161
|
0.051
|
| 32039 |
0.245
|
0.221
|
0.205
|
0.200
|
0.191
|
0.060
|
|

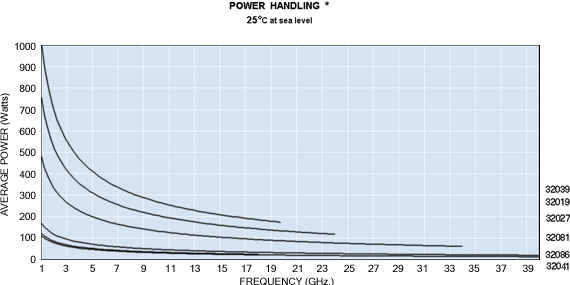

200 MHz.
|
400 MHz.
|
600 MHz.
|
800 MHz.
|
|||||
|
dB/100 ft.
|
Watts
|
dB/100 ft.
|
Watts
|
dB/100 ft.
|
Watts
|
dB/100 ft.
|
Watts
|
|
| 32041 |
14.3
|
340
|
20.2
|
240
|
24.9
|
190
|
28.8
|
160
|
| 32086 |
13.0
|
280
|
19.0
|
200
|
23.0
|
160
|
27.0
|
135
|
| 32081 |
11.5
|
390
|
16.3
|
270
|
20.0
|
220
|
23.1
|
190
|
| 32027 |
5.7
|
1100
|
8.2
|
770
|
10.1
|
620
|
11.7
|
530
|
| 32019 |
4.2
|
1800
|
6.0
|
1260
|
7.5
|
1000
|
8.7
|
870
|
| 32039 |
3.5
|
2400
|
5.1
|
1660
|
6.3
|
1300
|
7.3
|
1100
|
