Cable Types: 32084, 32025
High frequency / high flexibility microwave coaxial cables
PRODUCT DESCRIPTION

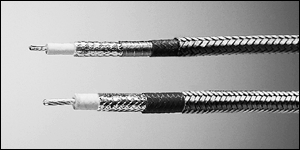

ever-flex cables were designed for use in ultradurable, high flexure applications such as gimbal assemblies and installations where the cable assembly must endure multiple tight bends and twists. ever-flex cable assemblies have repeatedly endured 1,000,000 flexure cycles with minimal electrical and mechanical degradation. All incorporate a flat wire outer conductor and a microporous dielectric for low loss and a tight woven stainless steel outer braid for improved resistance to crushing, bending and kinking.
|
PRODUCT FEATURES
|
RECOMMENDED CONNECTORS
|
| CABLE |
32084
|
32025
|
| Flexure |
1 million
|
3 million
|
| Oper. Freq. |
40 GHz
|
12 GHz
|
| Velocity |
76 %
|
76 %
|
| Impedance |
50 ohms
|
50 ohms
|
| Cap. pf./ft. |
26.0
|
26.9
|
| Weight lbs./100 ft. |
0.70 lbs.
|
0.80 lbs.
|
| Static Bend Radius Around Mandrel (IN.) |
0.16
|
0.20
|
| Insertion Loss dB/100 ft. |
110 @ 18 GHz
|
110 @ 12 GHz
|
| Dynamic Bend Radius |
0.5 Inches
|
0.5 Inches
|

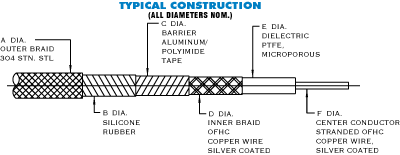

| CABLE |
A
|
B
|
C
|
D
|
E
|
F
|
Center
Conductor |
| 32084 |
0.086
|
0.080
|
0.072
|
0.067
|
0.061
|
0.020
|
UNILAY
|
| 32025 |
0.094
|
0.085
|
N/A
|
0.077
|
0.071
|
0.025
|
ROPEFLEX
|
|
200 MHz.
|
400 MHz.
|
600 MHz.
|
800 MHz.
|
|||||
|
dB/100 ft.
|
Watts
|
dB/100 ft.
|
Watts
|
dB/100 ft.
|
Watts
|
dB/100 ft.
|
Watts
|
|
| 32084 |
11.2
|
440
|
15.9
|
300
|
19.5
|
240
|
22.5
|
210
|
| 32025 |
10.2
|
510
|
14.4
|
350
|
17.7
|
290
|
20.4
|
250
|
