1. 2.4 series of millimeter-wave cable assemblies
2.4 series of millimeter-wave range from 2.4 millimeter wave cable assemblies connected with the appropriate connector cables composition, the use of frequencies up to 40GHz. 2.4 Series connector uses millimeter-wave air interface, M7 × 0.75 threaded connections, with small size, light weight, reliable connection. 2.4 Series cable assemblies using millimeter-wave frequency bandwidth, high-frequency performance, are widely used in microwave communications and microwave measurement.
2. Technical indicators
| Model | Temperature | Frequency range | VSWR | Insertion Loss | Can be connected with cables |
| 2.4-J/J2.4-J-L | -40℃~85℃ | DC~40GHz | ≤1.35 | ≤3dB/m |
QMF30 SF102E |

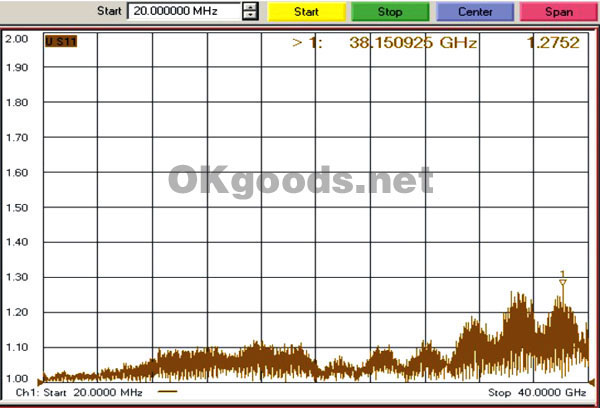

3. Test Data
