1501/1503
Product Description

1501/1503 Cable



Cable Type
Operating Frequency
(GHz)
Cable diameter (inches)
Bending Radius (inches)
Weight
(lbs/100 ft)
VP
%
Delay
(Ns / ft.)
1501
45
0.15
3/4
2.2
84
1.2
1503
45
0.23
1/2
3.6
84
1.2





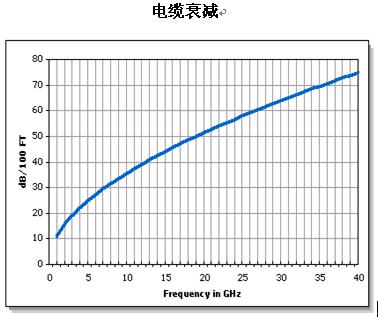

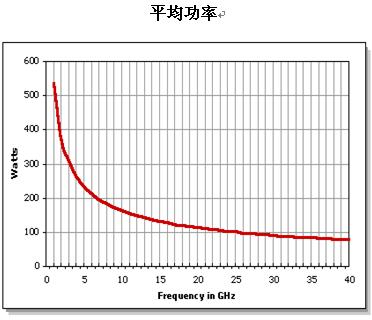

Attenuation > 100dB TO 18 GHz
Connector loss:
Connection Type
Straight
Right angle bend
SMA
0.012*F
0.017*F
 2.9mm
0.01*F
0.015*F
Impedance

50 Ohm
RF Leakage to 18Ghz

-100 dB; 90 dB for single Shield
Temperature Range

-65°C to 135°C

200°C Assemblies on Request
 -55°C to +85°C
200°C Assemblies not available for 2.9mm Connectors





         VSWR:
Connector Type
2 Straight
1 Straight
2 Right angle bend

1 Right angle bend

18 GHz Assemblies
1.35
1.40
1.45
40 GHz Assemblies
1.35
1.40
1.45
