Semi-Rigid Cable semi-rigid cable for transmitting or receiving high-speed, high-frequency microwave signals, it is very practical, and:

  • Loss, total shielding is equal to or close to the theoretical value;
  • Eliminate radiation leakage;
  • Lowest possible attenuation;
  • Ranging VSWR (SWR) performance at 12GHz or more;
  • Miniaturization of the power module.

  With MICRO-COAX company's semi-rigid coaxial cable, you can use the maximum power, capacity, efficiency and minimal interference in a very small space transmission of microwave energy structure.

  Excellent performance of semi-rigid coaxial cable MICRO-COAX companies include:

  • Usability: easy to bend, winding, stripping, mechanical or welded connections, but does not affect performance;
  • Attenuation Performance: solid center conductor transmission line geometry to provide the best surface;
  • Impedance: SWR (SWR) is low, the tolerance of the medium can be accurately controlled to reduce the reflection loss of power;
  • Shield: isolation greater than 130db, virtually no independent signal crosstalk;
  • Packaging: metal tubular outer conductor, and the smallest size to provide maximum robustness, copper outer conductor is soldered directly to the circuit board to.

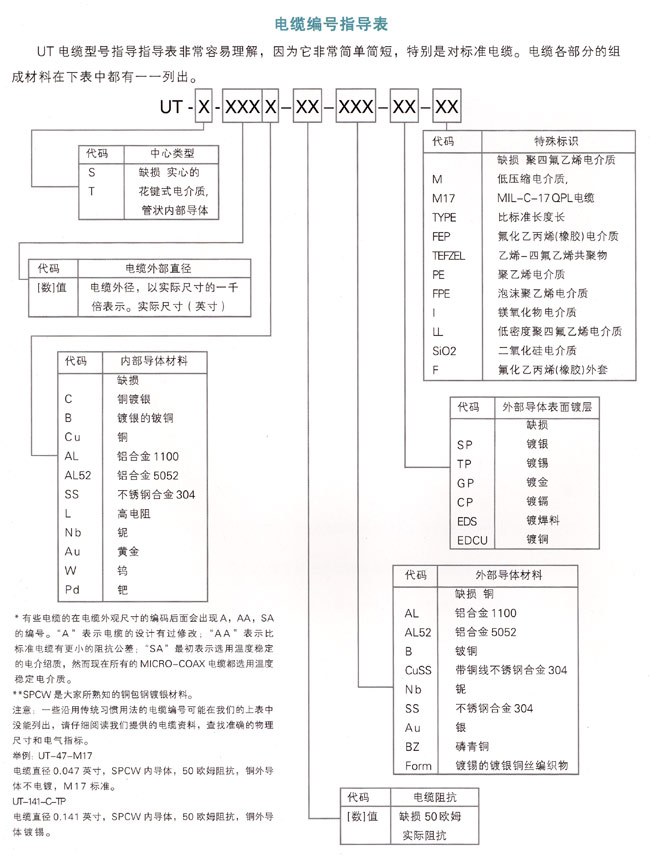

Cable P/N
Diameter
(inches)
Insertion Loss
(dB/ft@10GHz)
Impedance
(ohms)
Max Frequency
(GHz)
UT-085-H-M17 0.087 0.8 50 20

UT-085-SP 0.087 0.68 50 61

UT-085-SS 0.087 1.46 50 61

UT-085-TP 0.087 0.68 50 61

UT-085-Type 0.087 0.68 50 61

UT-085 0.087 0.68 50 61

UT-085-AL-TP-M17 0.087 0.72 50 61

UT-085B 0.087 0.68 50 61

UT-085B-SS 0.087 1.46 50 61

UT-085C 0.087 0.68 50 61

UT-085C-AL-TP-LL 0.087 0.62 50 64

UT-085C-EDS9010 0.087 0.67 50 61

UT-085C-EDS9010-LL 0.087 0.57 50 64

UT-085C-LL 0.087 0.57 50 64

UT-085C-SP 0.087 0.68 50 61

UT-085C-TP 0.087 0.68 50 61

UT-085C-TP-LL/RE50085 0.087 0.57 50 64

UT-085-CUSS 0.087 0.675 50 61

UT-085-EDS9010 0.087 0.67 50 61

UT-120C-LL 0.120 0.37 50 40

UT-120C-TP-LL 0.120 0.37 50 40

UT-141A/AA50141 0.141 0.42 50 34

UT-141AA 0.141 0.42 50 34

UT-141A-AL-EDS9010 0.141 0.44 50 34

UT-141A-AL-TP/AX50141 0.141 0.44 50 34

UT-141A-EDS9010 0.141 0.42 50 34

UT-141A-SP 0.141 0.42 50 34

UT-141A-TP 0.141 0.42 50 34

UT-141A-Type 0.141 0.42 50 34

UT-141B 0.141 0.42 50 34

UT-141B-SS 0.141 0.86 50 34

UT-141B-TP 0.141 0.42 50 34

UT-141C 0.141 0.42 50 34

UT-141C-AL-TP-LL 0.141 0.36 50 36

UT-141C-EDS9010-LL 0.141 0.33 50 36

UT-141C-LL 0.141 0.33 50 36

UT-141C-SP 0.141 0.42 50 34

UT-141C-SS 0.141 0.86 50 34

UT-141C-SS-LL 0.141 0.78 50 36

UT-141C-TP 0.141 0.42 50 34

UT-141C-TP-LL 0.141 0.33 50 36

UT-141C-TYPE 0.141 0.42 50 34

UT-141L 0.141 2.21 50 34

UT-141-SS 0.141 0.86 50 34

UT-141-SS-SS 0.141 2.33 50 34





Cable P/N
Diameter
(inches)
Insertion Loss
(dB/ft@10GHz)
Impedance
(ohms)
Max Frequency
(GHz)
UT-085C-15 0.087 1.2 15 47

UT-085C-15-TP 0.087 1.19 15 46

UT-090C-25 0.090 0.79 25 46

UT-090C-25-TP/DE25090 0.090 0.79 25 46

UT-090C-35 0.090 0.66 35 49

UT-125C-25-TP/DE25125 0.125 0.63 25 34

UT-141C-10 0.141 0.94 10 25

UT-141C-15 0.141 0.75 15 27

UT-141C-15-TP 0.141 0.75 15 27

UT-141C-25 0.141 0.52 25 29

UT-141C-25-TP/DE25141 0.141 0.52 25 29

UT-141C-35 0.141 0.45 35 31

UT-141C-35-TP/DE35141 0.141 0.45 35 31
